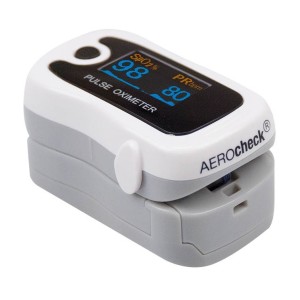

HUM PULSE OXYMETER

Reliable and instantaneous oxygen and pulse rate measurement.

• Place your finger in the device.
• Press the single button, and your oxygen saturation level will be displayed.

Why measure your oxygen saturation?

Oxygen saturation, among other things , provides information on the efficiency of oxygen transport — in other words , primarily on respiration. It is an important parameter for assessing respiratory function. In many cases, it helps characterize lung function and activity. Disorders in the body’s oxygen supply (lack of O2) can cause the following symptoms:

General: Dyspnea, decreased performance, dizziness, anxiety, weight loss, clubbing of the fingers, cyanosis, hyperventilation

Cardiac: Angina pectoris, tachycardia, arrhythmias

CNS: Fatigue, confusion, impaired cognitive function, loss of consciousness, coma

Monitoring oxygen saturation is essential in medical practice, as this value provides physicians with critical information needed to decide on appropriate therapeutic measures in a timely manner.

How does measuring blood oxygen levels work?

Oxygen concentration is measured using the photometric method employed by the AEROcheck® Finger Pulse Oximeter and Beer-Lambert’s law ( the foundation of modern photometry). Using the photometric measurement method employed by the device, light emitted by a sensor passes through the pulsating blood flow in the finger.

On one side of the finger clip, the sensor consists of two light sources illuminating a predefined area (wavelengths of 660 nm for red light and 940 nm for infrared light). Depending on the different coloration of oxygen-saturated hemoglobin, the resulting absorption varies and is measured by a photosensitive sensor on the other side of the finger cuff. The measured signal is processed by a microprocessor before being displayed on the screen.

Clarity of the display and oximetry data:

This pulse oximeterfeatures a high-quality display. In addition, the information is displayed in color, which greatly improves the screen’s readability. For greater reading comfort, the orientation of the data can also be adjusted, allowing you to switch between normal mode (horizontal display) and vertical mode.

Box contents:

• 1 x Pulse oximeter from the German brand HUM.
• 1 x Wrist strap
• 1 x Case
• 1 x User manual in French / German / Italian / English
• Comes WITH two 1.5V AAA batteries

Specifications:

DELO Display

• Organic light-emitting diode (OLED)
• Oxygen saturation (SpO2)
• Display range: 0–99%
• Measurement range: 70–99%
• Pulse rate
• Display range: 0–254 bpm
• Measurement range: 30–235 bpm
• Accuracy: 30–99 bpm, ±2 bpm; 100–235 bpm, ±2%
• Resolution: 1 bpm Power supply
• Battery type: 2 AAA 1.5 V alkaline batteries
• Current consumption: Less than 30 mA
• Battery life: 2 AAA alkaline batteries; 1.5 V; 1200 mAh, sufficient for 30 hours of continuous operation
• Low-battery indicator:
• Environmental conditions
• Temperature ranges
• Operating: +5 to +40 °C
• Storage: -20 to +55 °C
• Relative humidity: 5 to 80% (operating)
• 5 to 93% (storage)
• Atmospheric pressure: 86 kPa to 106 kPa
• Response time
• The slowest response time averages 12.4 s.

Classification

• Based on the type of protection against electric shocks: Device with internal power supply
• Based on the level of protection against electric shock: Type BF
• Based on the level of protection against water ingress: IPX1
• By operating mode: Continuous operation

Product Warranty

The device comes with a 6-month warranty covering any manufacturing defects, so you can use it with complete peace of mind.
